Flashers & Accessories Garmin ECHOMAP™ UHD 73cv 7″ Display
$95.99
- Secure Payments, Secure Shopping
- Free Shipping, No Compromise on Quality
- Easy, Fast Returns Guarantee
- Get the quality you deserve, for less.
Product subject to manufacturer availability.
PART NUMBER 010-02334-01
With GT24UHD-TM Transducer

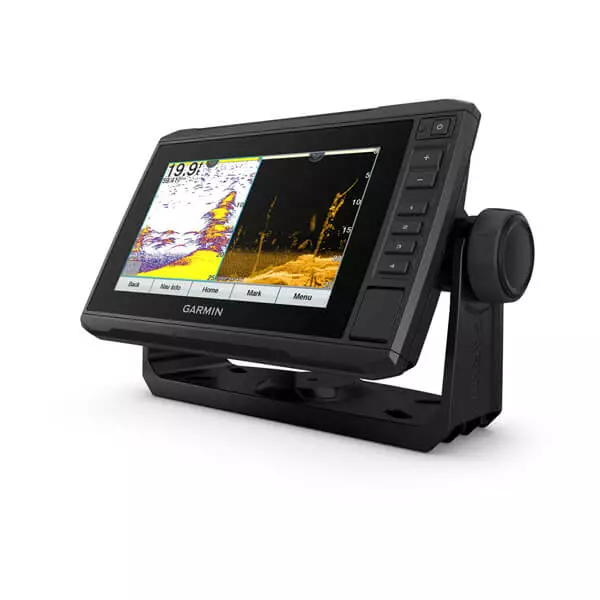

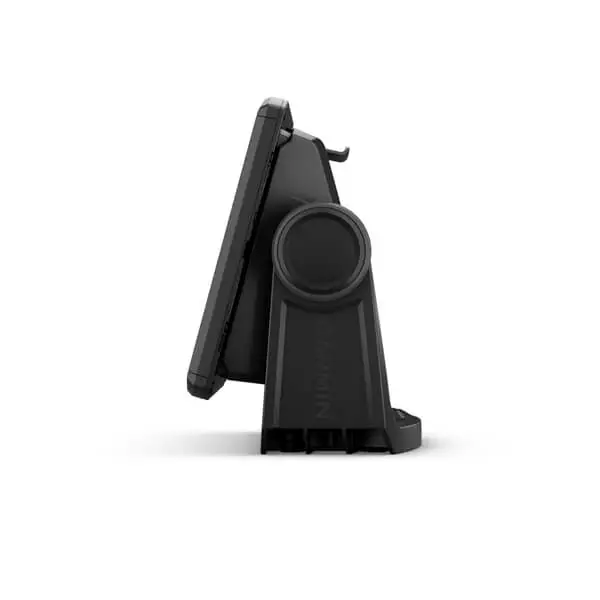

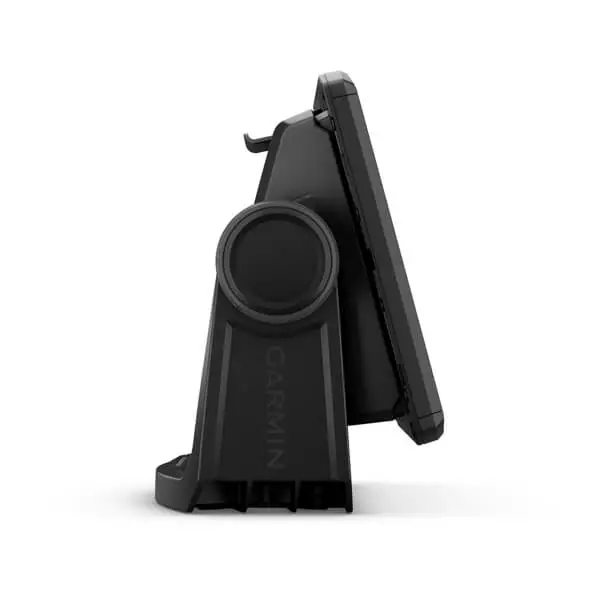

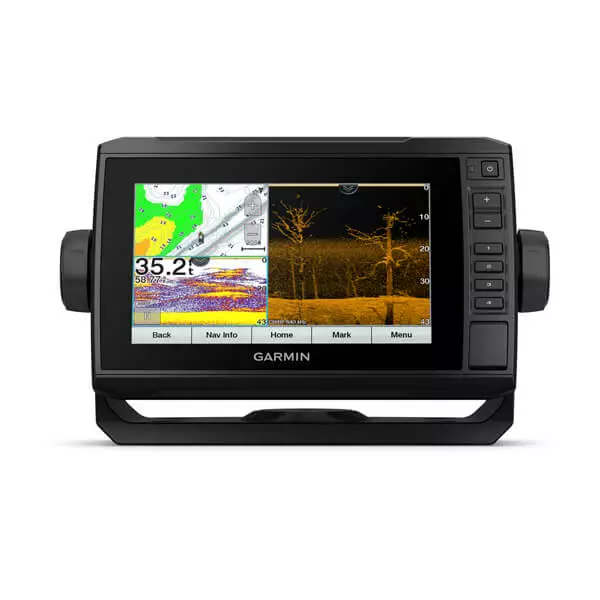

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount and a transducer for Ultra High-Definition scanning sonar and CHIRP traditional sonar.
See below your boat in incredible detail with included transducer
Navigate any waters with preloaded LakeVü g3 inland maps
Share data with other devices on your network (7” and 9” models only)
Manage your marine experience from nearly anywhere
Control the most powerful trolling motor available
Create your own maps on the fly and tailor them to fit your needs
General | |
| DIMENSION | 9.8″ x 5.5″ x 2.0″ (25 x 13.9 x 5.1 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 6.1″ x 3.4″; 7.0″ diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, NP |
| WEIGHT | 1.7 lbs (0.77 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory | |
| NAVIGATIONIGATION ACCEPTS DATA CARDS | 1 microSD card; 32 GB maximum size |
|---|---|
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors | |
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 5 Hz |
| NMEA 2000 COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| SUPPORTS WAAS | |
Built-in Maps | |
| LAKEVU (INLAND) | |
|---|---|
| (SOUNDER) TIDE TABLES | |
Optional Map Support | |
| BLUECHART G3 | |
|---|---|
| BLUECHART G3 VISION | |
| LAKEVÜ G3 | |
| LAKEVÜ G3 ULTRA | |
| GARMIN NAVIONICS+™ | |
| GARMIN NAVIONICS VISION+™ | |
| (SOUNDER) TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features | |
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION LYNC COMPATIBLE RADIO | |
| BLUECHART MOBILE PLANNING COMPATIBLE | yes |
| WIRELESS REMOTE COMPATIBLE | |
| SAILING FEATURES | |
Sonar Features & Specifications | |
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 500 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |
Connections | |
| NMEA 2000 PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 1 Panoptix™ port |
| 8-PIN TRANSDUCER PORTS | 1 |
Electrical Features | |
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 0.8 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.25 A |
| MAXIMUM POWER USAGE AT 10 VDC | 15W |
| Charts and Maps | U.S. LakeVU G3 |
|---|---|
| Sonar Type | Ultra High-Definiton ClearVU and Traditional Chirp |
| Includes Transducer | Yes |
