Flashers & Accessories Garmin ECHOMAP™ Ultra 126sv 12″ Display
$93.99
- Secure Payments, Secure Shopping
- Free Shipping, No Compromise on Quality
- Easy, Fast Returns Guarantee
- Get the quality you deserve, for less.
Product subject to manufacturer availability.
PART NUMBER 010-02529-01
With GT56UHD-TM Transducer
The sunlight-readable 12” touchscreen combo features preloaded BlueChart® g3 charts and LakeVü™ g3 maps, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
The keyed-assist 12” touchscreen puts fishfinding know-how at your fingertips.
See crisp images of structure and fish in stunning detail.
Navigate confidently with preloaded BlueChart g3 charts and LakeVü g3 maps.
Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
Connect your boat to share data, sonar and charts with your other compatible devices.
Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
General | |
| DIMENSION | 13.4″ x 9.0″ x 3.9″ (34.1 x 22.9 x 9.8 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 10.3″ x 6.4″; 12.1″ diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA, IPS |
| WEIGHT | 5.5 lbs (2.5 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory | |
| NAVIGATIONIGATION ACCEPTS DATA CARDS | 2 microSD cards |
|---|---|
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors | |
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| SUPPORTS WAAS | |
Built-in Maps | |
| BLUECHART (COASTAL) | |
|---|---|
| LAKEVU (INLAND) | |
| (SOUNDER) TIDE TABLES | |
Optional Map Support | |
| BLUECHART G3 | |
|---|---|
| BLUECHART G3 VISION | |
| LAKEVÜ G3 | |
| LAKEVÜ G3 ULTRA | |
| GARMIN NAVIONICS+™ | |
| GARMIN NAVIONICS VISION+™ | |
| (SOUNDER) TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features | |
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION LYNC COMPATIBLE RADIO | |
| BLUECHART MOBILE PLANNING COMPATIBLE | yes |
| SAILING FEATURES | |
Sonar Features & Specifications | |
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| (SOUNDER) SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |

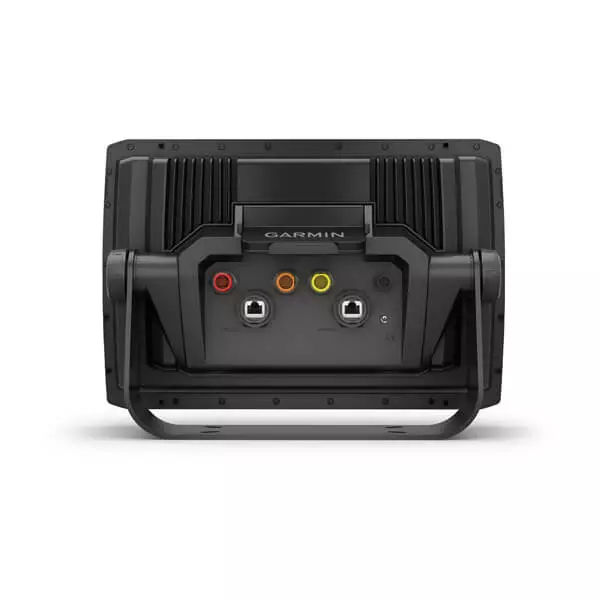

Connections | |
| NMEA 2000 PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 1 LVS sonar; 1 scanning sonar |
Electrical Features | |
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 3.0 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.3 A |
| MAXIMUM POWER USAGE AT 10 VDC | 26.2W |
| Charts and Maps | Bluechart G3 and LakeVU G3 |
|---|---|
| Includes Transducer | Yes |
