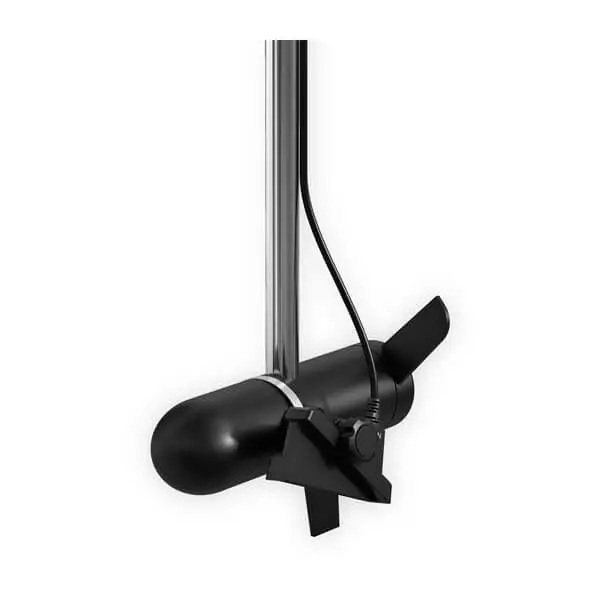

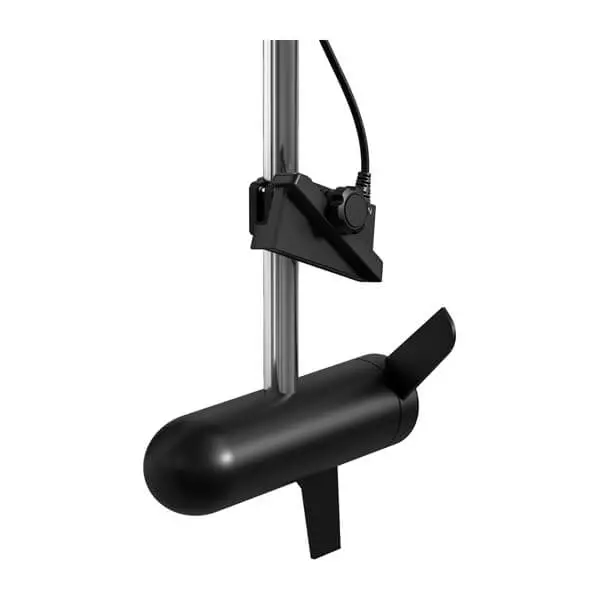

Garmin LiveScope™ Plus LVS34 Transducer ONLY Flashers & Accessories
$96.99
- Secure Payments, Secure Shopping
- Free Shipping, No Compromise on Quality
- Easy, Fast Returns Guarantee
- Get the quality you deserve, for less.
Product subject to manufacturer availability.
PART NUMBER 010-02706-10
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
General | |
| DIMENSION | 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm) |
|---|---|
| WEIGHT | 2.25 lbs (1.02 kg) |
| WATERPROOF | IPX7 |
| TEMPERATURE RANGE | Operating: 0 C to 40 C
|
Sonar Features & Specifications | |
| FREQUENCY | 530 – 1,100 kHz |
|---|---|
| MAXDEPTH | Down and Forward: 200’ (61.0 m) |
Connections | |
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 1 (small connector) |
|---|---|
Electrical Features | |
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4″ (0.1 m) |
- Minimum depth: 3′ (0.91 m)
- Sonar type: Live
- Beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
| Sonar Module Included | No |
|---|
