Product subject to manufacturer availability.
PART NUMBER 010-02706-00

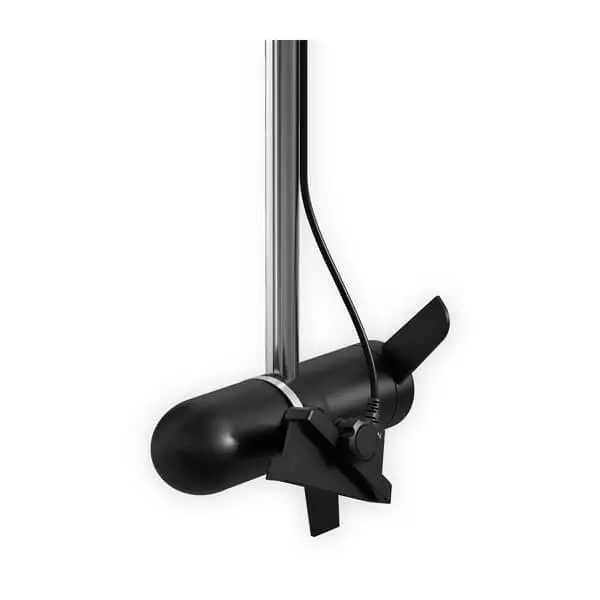

With GLS 10™ and LVS34 Transducer
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
General | |
| DIMENSION | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| WEIGHT | GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| WATERPROOF | IPX7 |
| TEMPERATURE RANGE | GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
Sonar Features & Specifications | |
| FREQUENCY | 530 – 1,100 kHz |
|---|---|
| MAXDEPTH | Down and Forward: 200’ (61.0 m) |
Connections | |
| CONNECTIONS GARMIN MARINE NETWORK PORTS | 1 (small connector) |
|---|---|
Electrical Features | |
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4″ (0.1 m) |
- Minimum depth: 3′ (0.91 m)
- Sonar type: Live
- Beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
