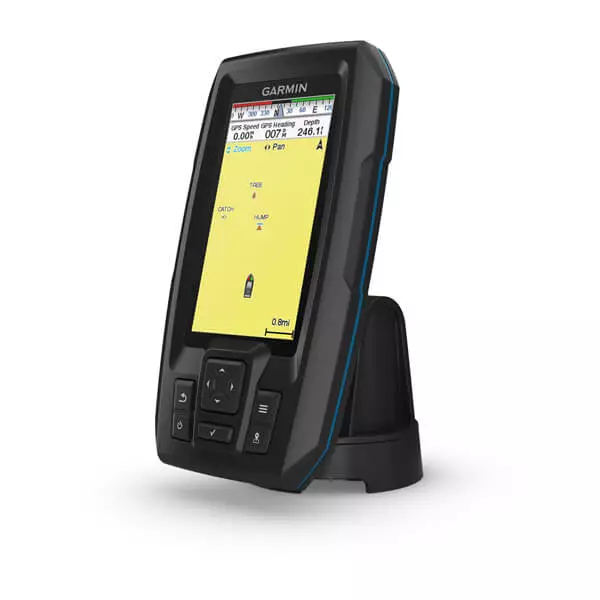

Garmin STRIKER™ Vivid 4cv 4″ Display Flashers & Accessories

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

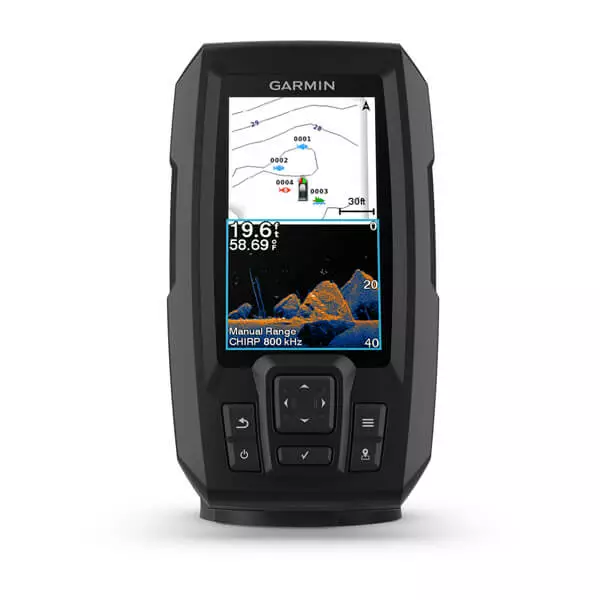

What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

What’s under the water’s surface looks pretty good as 1′ contours, just saying.

General
DIMENSION	3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm)
INPUT	Keyed
DISPLAY SIZE	2.1″ x 3.7″ (5.4 x 9.5 cm); 4.3″ diag, (10.9 cm)
DISPLAY RESOLUTION	272 X 480 pixels
DISPLAY TYPE	QSVGA
WEIGHT	0.7 lbs (320 g)
WATERPROOF	IPX7
MOUNTING OPTIONS	flush, tilt/swivel

Maps & Memory
WAYPOINTS/FAVORITES/LOCATIONS	5000
TRACK POINTS	50,000
TRACKS	50
NAVIGATION ROUTES	100

Sensors
HAS BUILT-IN RECEIVER
RECEIVER	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz
GPS
SUPPORTS WAAS

Optional Map Support
GARMIN QUICKDRAW CONTOURS

Sonar Features & Specifications
DISPLAYS SONAR
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	Built-in
CLEARVÜ
FREQUENCY	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG

Connections

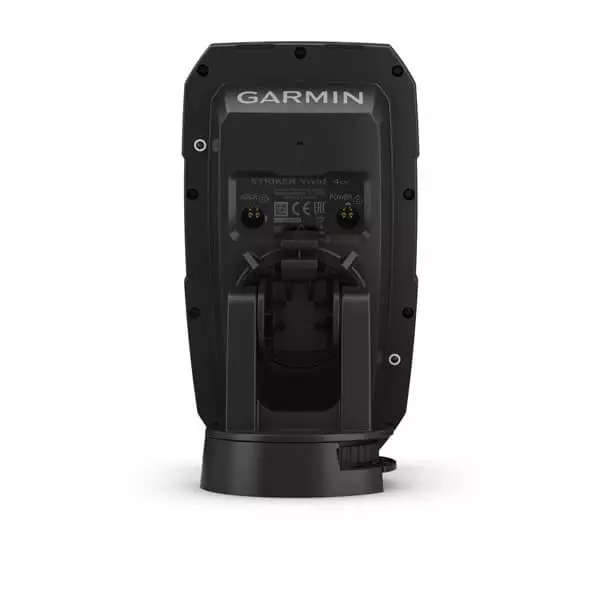

4-PIN TRANSDUCER PORTS	1

Electrical Features
POWER INPUT	12 to 20 Vdc
TYPICAL CURRENT DRAW	0.40 A
MAX CURRENT DRAW	1.5 A
POWER CONSUMPTION	4.8
TRANSMIT POWER	300 W (RMS)

Fishfinder Features
SPLIT-SCREEN ZOOM
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS)
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
WATER TEMPERATURE SENSOR INCLUDED
DEPTH RANGE SHADING
