Malone MicroSport™ LowBed™ Trailer W/Tier, Spare, 2 Sets Bunks, Cargo Box, Rod Tube Kayak Accessories

SKU:  MPG464-LBTB

Oversized delivery charge. $265 Per MicroSport Trailer with Cargo Box.

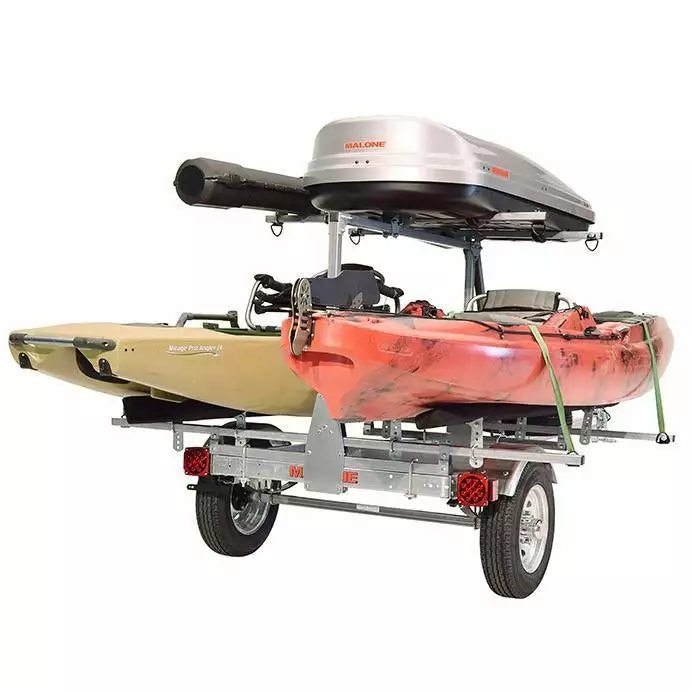

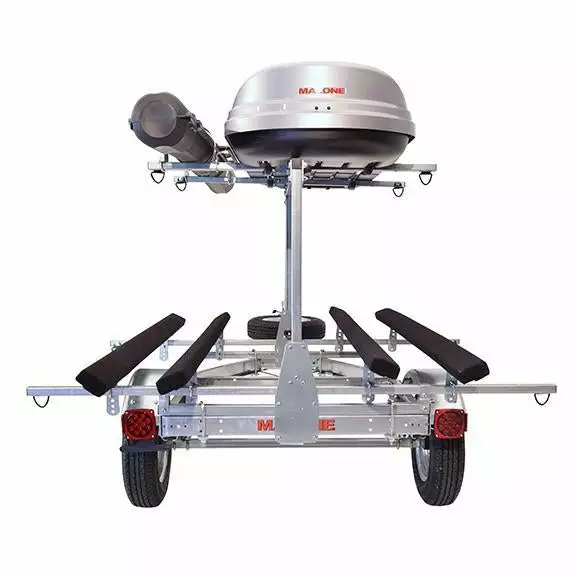

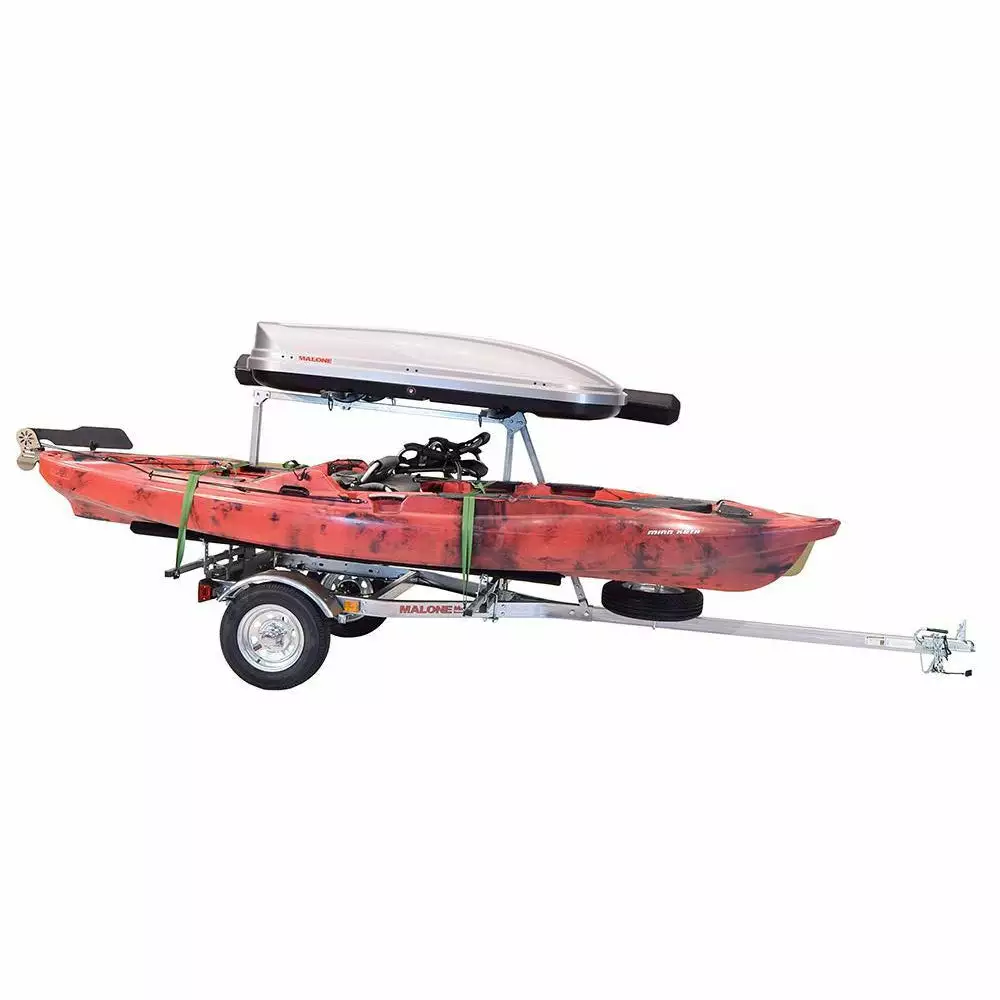

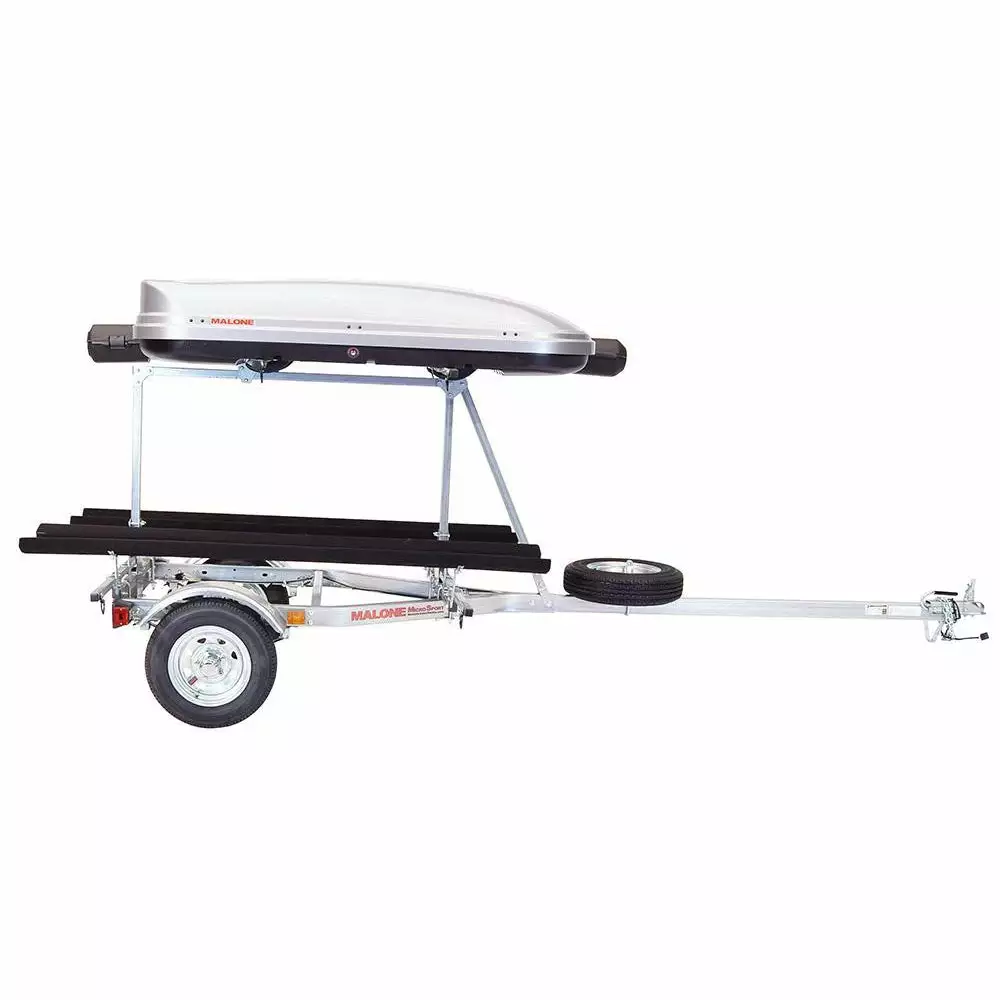

The MicroSport™ LowBed™, when outfitted with the MPG464-LBTB package is one of our most “option rich” trailers. Each unit is fitted with a 2nd Tier designed to hold the Malone Cargo16™ Roof Box and Fishing Rod Storage Tube.

The 78″ long load bars are just 22” from the ground and provide ample room for two sets of MPG561 Large Kayak Bunk Kits that are also provided. Loading and unloading heavy fishing kayaks has never been easier. These galvanized marine grade trailers can be backed down a boat ramp so the boats can be launched directly into the water.

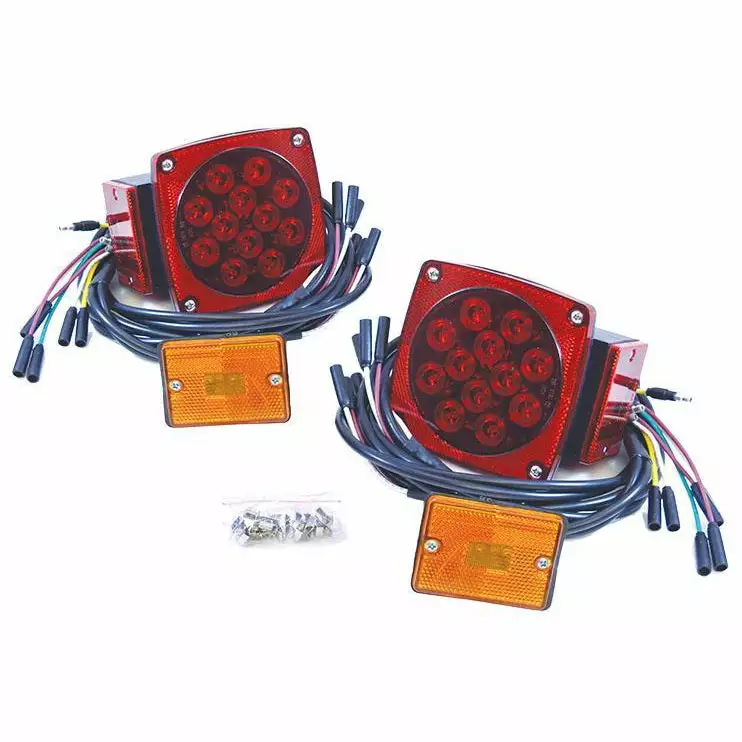

The 2nd Tier has a 100 lb. load rating with 50” long upper load bars that provide a comfortable height (58”) to access the cargo box and Rod Storage Tube. Other features include submersible LED lighting, Spare Tire with Locking Attachment and a Class II, 2″ hitch receiver.

This 800 lb. load rated trailer is DOT and Transport Canada approved and assembles in approximately three to four hours with standard tools. Includes a Five Year Limited Warranty and is proudly, Made in the USA.

---

Features:

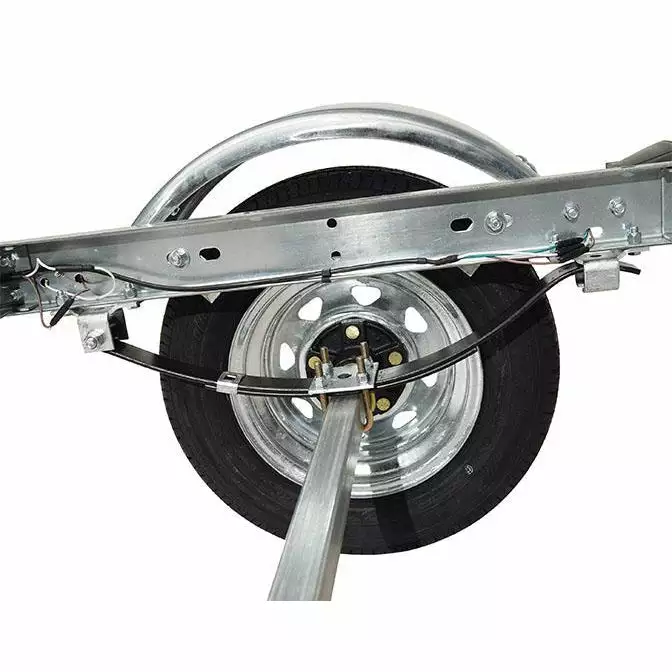

• Pre-assembled hubs for a clean and simple installation
• 12″ galvanized wheels with marine grade sealed bearings
• Reinforced steel tongue can transport boats up to 20′ in length
• 78’’ steel, 1 ¼’’ square load bars featuring d-ring tie-downs
• 50″ steel, 1 ¼’’ square upper load bars with 2nd Tier Kit
• 11 gauge pre-galvanized steel construction for years of service
• Five Year Limited Warranty – Made in the USA

---

Specifications:

• Load Capacity: 800 lb / 20′ canoe or kayak
• Dimensions: 13′ 3″ (length)
• Width (Without crossbars): 55″
• Frame Width Assembled (Width within Fenders): 40″
• Weight (Without accessories): 197 lb
• Frame: Marine grade galvanized steel
• Hitch: 2″ Class II receiver
• Required Ball Size for Vehicle Attachment: 2″
• Mounting Height for Ball from Ground: 18″
• Recommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Lower Cross Bar Spread (Adjustable): 44″ – 63″
• Height of Upper Cross Bars from Ground: 58″
• Height of Lower Cross Bars from Ground: 22″
